Air throttle installation
« on: August 09, 2014, 05:30:49 AM »
I should probably keep a series going about the installation process.  But, I'll continue to have lots of questions along the way.  I know some of you have already done this, so any help would be appreciated.

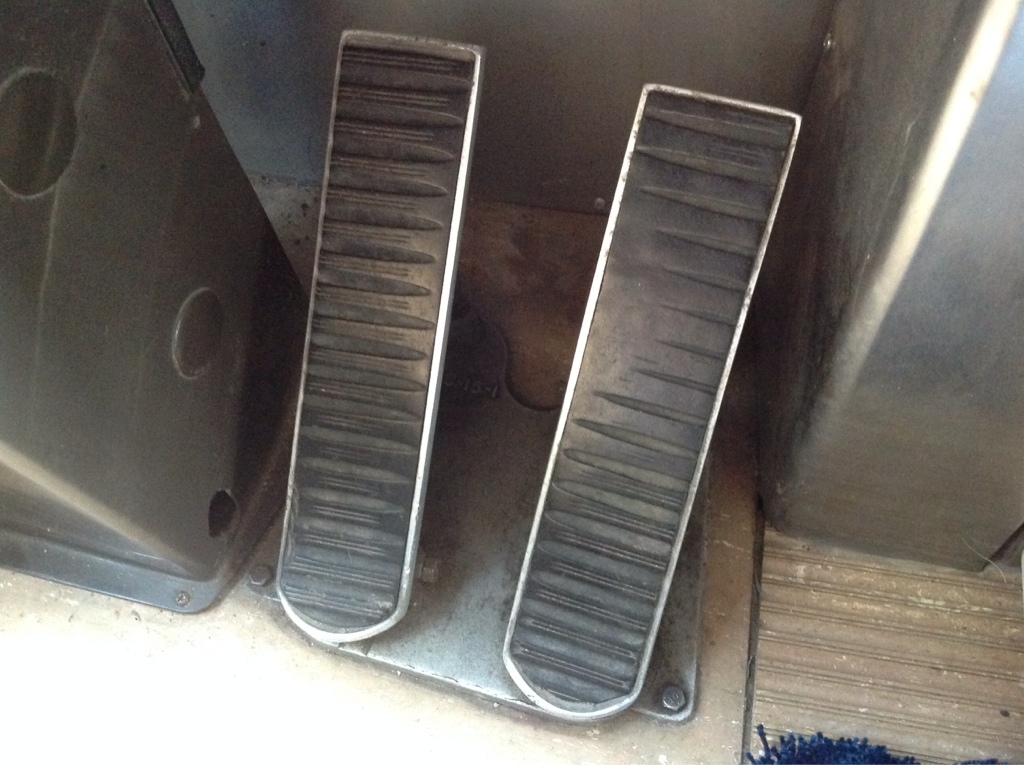

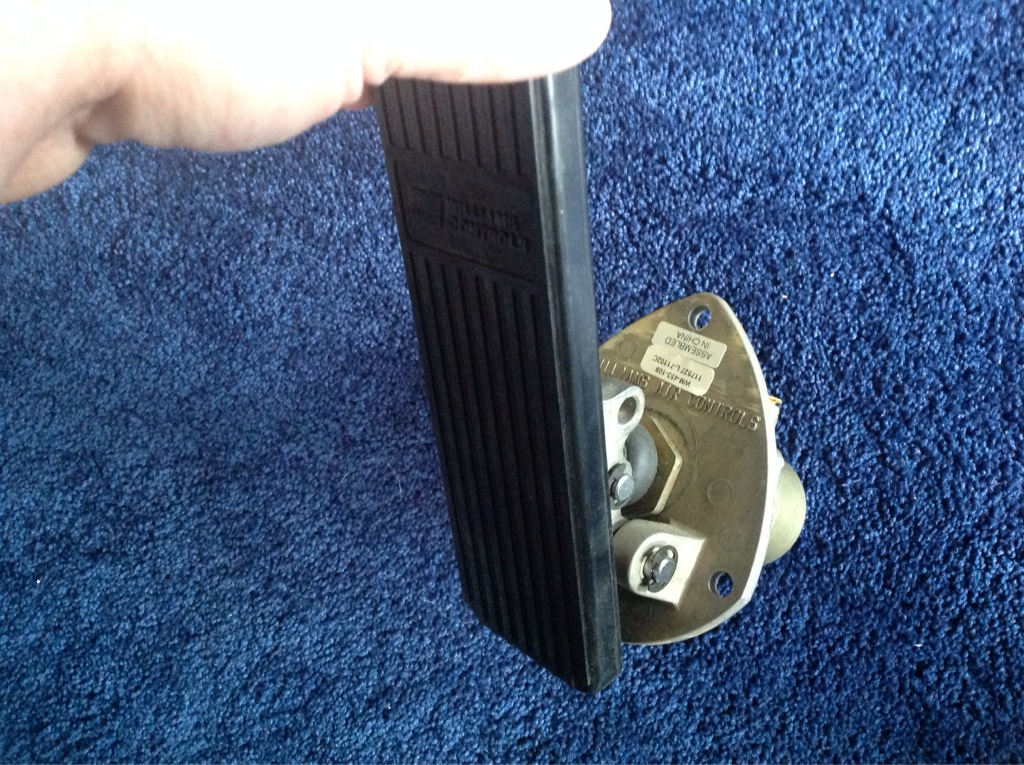

Below are a couple pictures.  How do I install the pedal?  Do I cut the MCI floor plate in two?  Or, do I keep the plate and just cut a big hole in it and set the new pedal on top?

Any thoughts on removing the cable and installing the air line?   where do i get the air from?

thanks,
Dave



1989 MCI-102 A3
DD 6V92 Turbo, Alison
Tons of stuff to learn!
Started in Cheboygan, Michigan (near the Mackinaw Bridge).  Now home is anywhere we park
http://dave-amy.com/

Offline JackConrad

  • Orange Blossom Special II
  • Hero Member
  • *****
  • Posts: 4448
  • 73' MC-8 8V71/HT740 Southwest Florida
Re: Air throttle installation
« Reply #1 on: August 09, 2014, 05:43:31 AM »
We are heading out the door to head to the river to kayak.  I will look for the article I wrote about our air throttle installation for BCM when we return late this afternoon.  It will answer many of your questions.

Jack
Growing Older Is Mandatory, Growing Up Is Optional
Arcadia, Florida, When we are home
http://s682.photobucket.com/albums/vv186/OBS-JC/

Offline Oonrahnjay

  • Hero Member
  • *****
  • Posts: 3474
Re: Air throttle installation
« Reply #2 on: August 09, 2014, 10:38:45 AM »
    You know how everything you try to do on a bus is complicated???  You start with simple parts in a new, easy place and then it all goes over the hill?  My air throttle install was about the opposite of that.  I had air at the driver's position of air seats and an air horn.  I put the pedal on the floor, the cylinder on the engine fuel pump, ran DOT air line, and drove off.  I was AMAZED -- it usually doesn't happen like that!

B Henderson  NC   USA
Bruce H; Wallace (near Wilmington) NC
1976 Daimler (British) Double-Decker Bus; 34' long

(New Email -- brucebearnc@ (theGoogle gmail place) .com)

Offline Tikvah

  • Hero Member
  • *****
  • Posts: 919
    • Dave & Amy
Re: Air throttle installation
« Reply #3 on: August 09, 2014, 12:13:53 PM »
That's encouraging!  You're right, everything is a challenge and I try to have an idea before I dive in.
1989 MCI-102 A3
DD 6V92 Turbo, Alison
Tons of stuff to learn!
Started in Cheboygan, Michigan (near the Mackinaw Bridge).  Now home is anywhere we park
http://dave-amy.com/

Offline biff

  • Full Member
  • ***
  • Posts: 134
Re: Air throttle installation
« Reply #4 on: August 13, 2014, 12:08:48 PM »
ive got the same set up i want to install on my mc8.my question is what is the best angle to have the pedel set at? for comfort. ???

Offline Oonrahnjay

  • Hero Member
  • *****
  • Posts: 3474
Re: Air throttle installation
« Reply #5 on: August 13, 2014, 12:30:25 PM »
  ive got the same set up i want to install on my mc8.my question is what is the best angle to have the pedel set at? for comfort. ???

    IME, it varies.  I put mine in and it was *just fine* with the stock driver's seat.  I put in a (much more comfortable) replacement seat and found that the angle was wrong.  I moved the floor unit a little (mine was "all the parts above the floor" so it was easy) and that fixed it.  But basically it seems mock it up and sit in the seat and try it.
Bruce H; Wallace (near Wilmington) NC
1976 Daimler (British) Double-Decker Bus; 34' long

(New Email -- brucebearnc@ (theGoogle gmail place) .com)

Offline biff

  • Full Member
  • ***
  • Posts: 134
Re: Air throttle installation
« Reply #6 on: August 14, 2014, 09:53:12 AM »
any body got any pictures of there instalation? like the hole in the floor and what was incounterd or what to look for.i think its going to be a fun project. ;D

Offline Boomer

  • Hero Member
  • *****
  • Posts: 1104
Re: Air throttle installation
« Reply #7 on: August 14, 2014, 10:50:22 AM »
Keep the floor plate and modify as required.  The Williams pedal comes in two different angles, you might find the 45 degree more comfortable.
'81 Eagle 15/45, NO MORE
'47 GM PD3751-438, NO MORE
'65 Crown Atomic, NO MORE
'48 Kenworth W-1 highway coach, NO MORE
'93 Vogue IV, NO MORE
1964 PD4106-2846
Vancouver, WA USA

Offline Dave5Cs

  • Hero Member
  • *****
  • Posts: 4667
  • BCM Subscriber
Re: Air throttle installation
« Reply #8 on: August 14, 2014, 11:45:33 AM »
As I remember Paul ( Dreamscape) had lots of pictures from his install. It was a very clean job. Might look up in search. Paul may show up soon!....... ;D

Dave5Cs
"Perfect Frequency"1979 MCI MC5Cs 6V-71,644MT Allison.
2001 Jeep Cherokee Sport 60th Anniversary edition.
1998 Jeep TJ ,(Gone)
 Somewhere in the USA fulltiming.

Offline luvrbus

  • Hero Member
  • *****
  • Posts: 26049
Re: Air throttle installation
« Reply #9 on: August 14, 2014, 12:13:01 PM »
With that pedal you can rotate it to the most comfy position for your style driving just get it right the 1st time
Life is short drink the good wine first

Offline biff

  • Full Member
  • ***
  • Posts: 134
Re: Air throttle installation
« Reply #10 on: August 17, 2014, 04:02:52 PM »
Hay jack did you forget about the article you wrote? ::)Ide like to read it. :o thanks.

Offline Gordie Allen

  • Sr. Member
  • ****
  • Posts: 325
    • THIS OLD BUS
Re: Air throttle installation
« Reply #11 on: August 17, 2014, 04:11:40 PM »
Don't know if this is of any help. It's a GM 4104 install.
http://this-old-bus.blogspot.com/
Augusta, MI
1956 4104
DD 671

Offline biff

  • Full Member
  • ***
  • Posts: 134
Re: Air throttle installation
« Reply #12 on: August 22, 2014, 01:28:19 PM »
Air throttles must be a boring subject.LOL :P

Offline gus

  • Hero Member
  • *****
  • Posts: 3632
Re: Air throttle installation
« Reply #13 on: August 22, 2014, 03:35:16 PM »
If you don't have a cruise control already make sure you leave enough space under the pedal to attach a hand throttle cable to use as a cruise substitute.

I've used a hand throttle on my 4107 for years but the clearance under my pedal is so close it is hard to keep it adjusted.

The 4104 came originally with a hand throttle.
PD4107-152
PD4104-1274
Ash Flat, AR

Offline TomC

  • Hero Member
  • *****
  • Posts: 9255
Re: Air throttle installation
« Reply #14 on: August 23, 2014, 12:33:13 PM »
With my air throttle, I added a small metal plate to the end of the gas pedal with a hole larger then the cable that pulls the pedal for the King Cruise. Then when I'm using my foot on the pedal, the cable just slides through the hole. But when the cruise control is activated, it pulls down on the gas pedal. It works well, and then the control unit is on the right side of the dash with the cable looping under the bus, up through the floor to pull down on the gas pedal. Good Luck, TomC
